Sectional Garage Doors

Sectional garage doors are composed of individual panels or sections.

Sectional garage doors consist of 3 to 6 individual panels or sections, connected by hinges that allow the door to bend as it lifts. These doors move overhead and rest parallel to the garage ceiling, guided by brackets. They use torsion spring systems for operation.

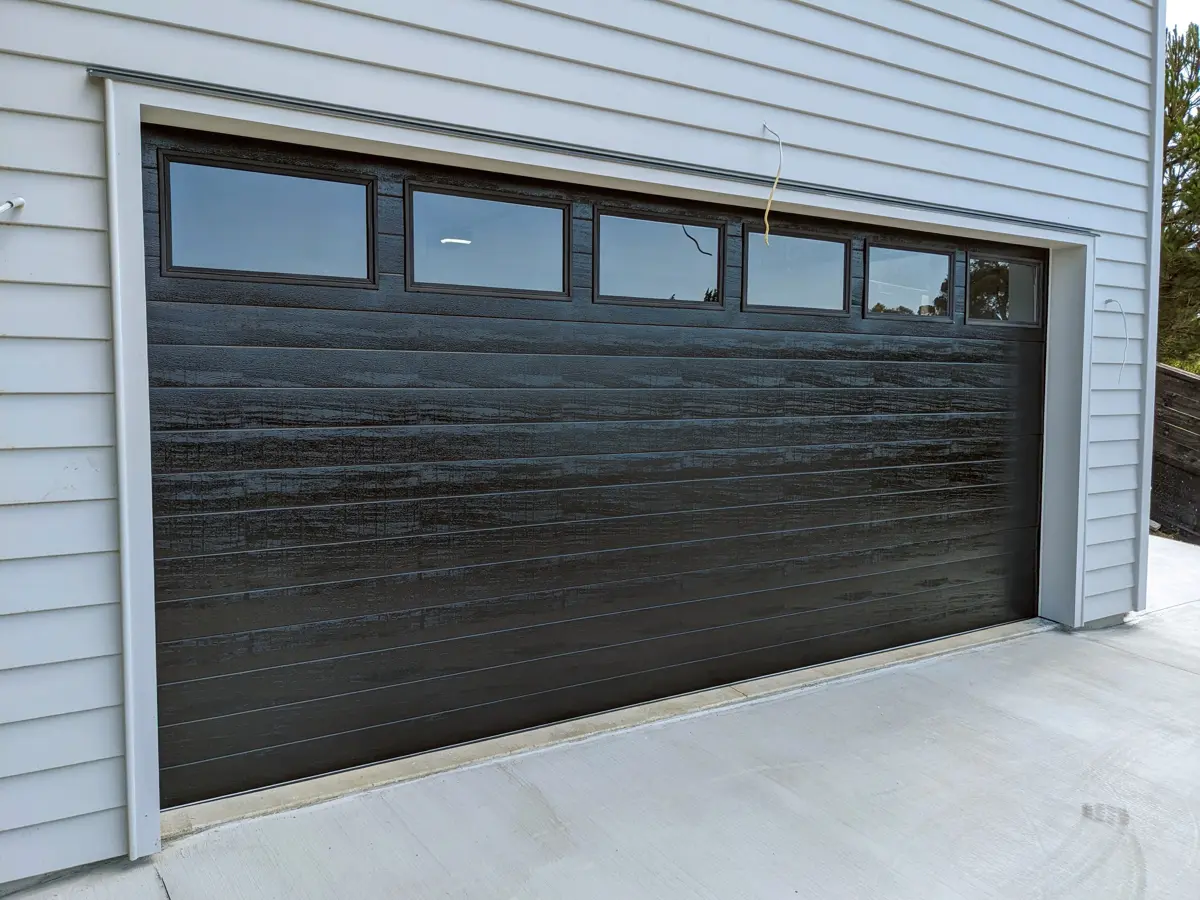

Sectional Garage Door

This type of garage door is suitable for both residential and commercial use, with features such as noise reduction and temperature control. However, it does require clearance room.

Specifications

The minimum and maximum height range for this type of garage door is 1900mm to 3300mm.
The minimum and maximum width range for this type of garage door is 2400mm to 6000mm.

Clearance Requirements

This type of garage door requires a minimum of 340mm headroom clearance, 120mm side clearance. The backspace should be the door height plus an additional 1000mm to allow for automation, or the door height plus an additional 150mm for a manual door.

Free Measure & Quote

Availability of sizes and installation clearance requirements for a Sectional Garage Door

Sectional garage doors can be used in garages with opening heights between 1900mm and 3300mm and widths between 2400mm and 6000mm. The size options may vary based on the chosen style of door. Sectional garage doors with openers require a minimum of 350mm headroom, 200mm low headroom, 140mm side clearance on each side, and 3500mm backspace clearance.

If you have any questions, please don't hesitate to contact us and we'll respond as soon as possible.
